Week 1: Integrated(Day 7): Integrate Components into a Simple Local Log Processing Pipeline

Welcome to Day 7 of our 254-Day Hands-On System Design journey! Today marks an exciting milestone as we'll be bringing together all the individual components we've built over the past six days to create an end-to-end log processing pipeline. This integration phase is where the magic happens—where isolated pieces transform into a cohesive system.

Understanding Integration in Distributed Systems

Integration is the process of combining separate components to work as a unified whole. In distributed systems, this represents a critical phase where theoretical components become practical solutions. Think of it like assembling a bicycle—you might have the best wheels, frame, and handlebars, but they provide value only when properly connected.

Real-world distributed systems like Netflix's logging infrastructure, Uber's trip tracking system, or Spotify's music recommendation engine all began as separate components that were eventually integrated into powerful platforms. The skills you're developing today mirror how engineers at these companies build their systems.

Why Integration Matters in System Design

Integration teaches several fundamental concepts in distributed system design:

1. Interface Design: Components must have well-defined methods of communication

2. Data Flow Management: Information must move smoothly between components

3. System Coupling: Understanding how tightly connected components should be

4. Error Handling: How to manage failures when components interact

5. State Management: Tracking the system's condition across components

Today's Project: Building an End-to-End Log Processing Pipeline

Let's integrate our log generator, collector, parser, storage system, and query tool into a functional pipeline where:

1. The generator creates logs at a specified rate

2. The collector detects and fetches these logs

3. The parser transforms raw logs into structured data

4. The storage system organizes and maintains the logs

5. The query tool allows us to search and analyze the logs

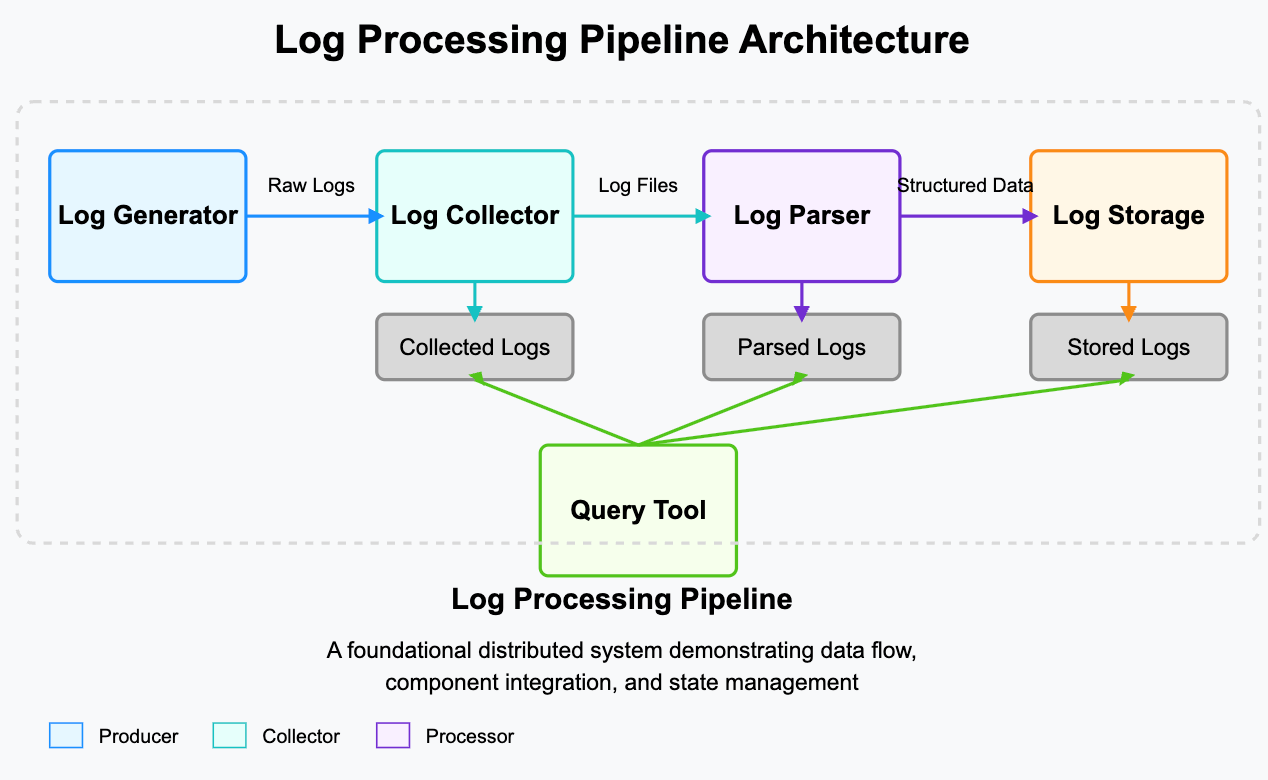

The Architecture of Our Log Processing Pipeline

Our pipeline follows the classic ETL (Extract, Transform, Load) pattern used by companies like Splunk, Elastic, and Datadog:

1. Extract: Log generator creates logs

2. Transform: Collector and parser process logs

3. Load: Storage system stores processed logs

4. Query: CLI tool retrieves useful information

This pattern is fundamental to many distributed systems, from data warehouses to monitoring solutions.

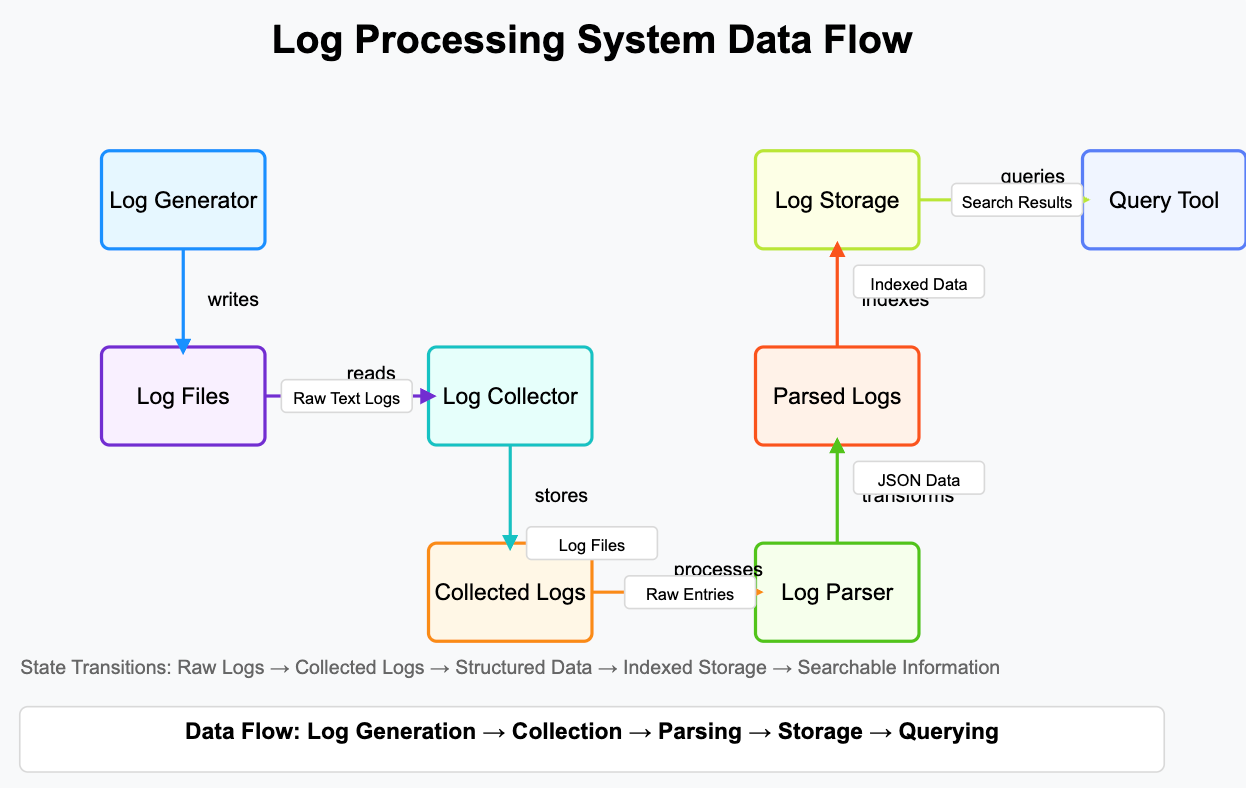

The magic happens in the connections between these components. In distributed systems, we call these connections "interfaces," and they're crucial for ensuring components can work together despite being developed independently.

Real-World Applications

The log processing pipeline we've built today is a simplified version of systems used in major technology companies:

1. Cloud Providers: AWS CloudWatch, Google Cloud Logging, and Azure Monitor all use similar pipelines to process billions of logs daily.

2. DevOps Tools: Splunk, ELK Stack (Elasticsearch, Logstash, Kibana), and Datadog use this pattern to provide insights into system operations.

3. Security Systems: Intrusion detection systems and SIEM (Security Information and Event Management) tools analyze logs to detect threats.

Key Distributed Systems Concepts Demonstrated

1. Component Integration: We've seen how separate components work together to form a system.

2. Data Pipeline: The system demonstrates a classic ETL (Extract, Transform, Load) process.

3. Stateful vs. Stateless Services: Log collectors are stateless (can be scaled horizontally) while storage is stateful.

4. Resource Sharing: Using Docker volumes as a shared resource between containers.

5. Fault Isolation: Each component runs in its own container, preventing failures from cascading.

Source Code Repo :

GitHub Link:

https://github.com/sysdr/course-p/tree/main/day7

Project Structure

We'll organize our project with a clear structure that facilitates both understanding and future expansion:

log-processing-system/
├── docker-compose.yml
├── Makefile
├── README.md
├── generator/
│   ├── Dockerfile
│   ├── generator.py
├── collector/
│   ├── Dockerfile
│   ├── collector.py
├── parser/
│   ├── Dockerfile
│   ├── parser.py
├── storage/
│   ├── Dockerfile
│   ├── storage.py
├── query/
│   ├── Dockerfile
│   ├── query.py
└── integration/
    ├── pipeline.py
    └── config.yml

Let's build this step by step.

Implementation Instructions

Step 1: Create Project Structure

First, let's create our project structure:

# Create the main project directory
mkdir -p log-processing-system
cd log-processing-system

# Create component directories
mkdir -p generator collector parser storage query integration

# Create necessary files
touch docker-compose.yml Makefile README.md
touch generator/Dockerfile generator/generator.py
touch collector/Dockerfile collector/collector.py
touch parser/Dockerfile parser/parser.py
touch storage/Dockerfile storage/storage.py
touch query/Dockerfile query/query.py
touch integration/pipeline.py integration/config.yml

Step 2: Implement Component Integration

Let's now implement each component, focusing on how they'll communicate with each other.

Generator Component (generator.py)

This component will generate sample logs following common formats:

Collector Component (collector.py)

This component will watch log files and detect new entries:

Parser Component (parser.py)

This component will transform raw logs into structured data:

Storage Component (storage.py)

This component will organize and maintain the logs:

Query Tool (query.py)

This component will allow us to search and analyze logs:

Integration Pipeline (pipeline.py)

Now let's create an integration script that will coordinate all of our components:

Configuration File (config.yml)

Step 3: Create Dockerfiles for Each Component

Let's create Dockerfiles for each component to ensure they can run independently:

Generator Dockerfile

# generator/Dockerfile
FROM python:3.9-slim

WORKDIR /app

COPY generator.py /app/

# Create directory for logs
RUN mkdir -p /logs

CMD ["python", "generator.py"]

Collector Dockerfile

# collector/Dockerfile
FROM python:3.9-slim

WORKDIR /app

COPY collector.py /app/

# Create required directories
RUN mkdir -p /logs /data/collected

CMD ["python", "collector.py"]

Parser Dockerfile

# parser/Dockerfile
FROM python:3.9-slim

WORKDIR /app

COPY parser.py /app/

# Create required directories
RUN mkdir -p /data/collected /data/parsed

CMD ["python", "parser.py"]

Storage Dockerfile

# storage/Dockerfile
FROM python:3.9-slim

WORKDIR /app

COPY storage.py /app/

# Create required directories
RUN mkdir -p /data/parsed /data/storage /data/storage/index /data/storage/active /data/storage/archive

CMD ["python", "storage.py"]

Query Dockerfile

# query/Dockerfile
FROM python:3.9-slim

WORKDIR /app

COPY query.py /app/

# Create required directories
RUN mkdir -p /data/storage

CMD ["python", "query.py"]

Integration Dockerfile

# Dockerfile (root)
FROM python:3.9-slim

WORKDIR /app

# Install required packages
RUN pip install pyyaml

# Copy component files
COPY generator/generator.py /app/generator/
COPY collector/collector.py /app/collector/
COPY parser/parser.py /app/parser/
COPY storage/storage.py /app/storage/
COPY query/query.py /app/query/
COPY integration/pipeline.py /app/integration/
COPY integration/config.yml /app/integration/

# Create required directories
RUN mkdir -p /logs /data/collected /data/parsed /data/storage /data/storage/index /data/storage/active /data/storage/archive

# Expose port for potential web interface
EXPOSE 8000

# Set the entrypoint
CMD ["python", "/app/integration/pipeline.py"]

Step 4: Create Docker Compose File

Let's create a Docker Compose file to run our entire pipeline:

# docker-compose.yml
version: '3'

services:
  generator:
    build:
      context: ./generator
    volumes:
      - log-data:/logs
    command: python generator.py --format apache --rate 5 --output /logs/app.log

  collector:
    build:
      context: ./collector
    volumes:
      - log-data:/logs
      - collected-data:/data/collected
    depends_on:
      - generator
    command: python collector.py --source /logs/app.log --output-dir /data/collected --interval 2

  parser:
    build:
      context: ./parser
    volumes:
      - collected-data:/data/collected
      - parsed-data:/data/parsed
    depends_on:
      - collector
    command: python parser.py --input-dir /data/collected --output-dir /data/parsed --format apache --interval 3

  storage:
    build:
      context: ./storage
    volumes:
      - parsed-data:/data/parsed
      - storage-data:/data/storage
    depends_on:
      - parser
    command: python storage.py --input-dir /data/parsed --storage-dir /data/storage --rotation-size 1 --rotation-hours 1 --interval 5

  query:
    build:
      context: ./query
    volumes:
      - storage-data:/data/storage
    depends_on:
      - storage
    # Command will be provided when running interactively

  integration:
    build:
      context: .
    volumes:
      - log-data:/logs
      - collected-data:/data/collected
      - parsed-data:/data/parsed
      - storage-data:/data/storage
    ports:
      - "8000:8000"
    depends_on:
      - generator
      - collector
      - parser
      - storage

volumes:
  log-data:
  collected-data:
  parsed-data:
  storage-data:

Step 5: Create a Makefile for Common Operations

Let's create a Makefile to simplify common operations:

# Makefile
.PHONY: build run stop clean query local-run local-stop

# Docker compose commands
build:
	docker-compose build

run:
	docker-compose up -d

stop:
	docker-compose down

clean: stop
	docker-compose down -v
	docker system prune -f

# Run query tool interactively
query:
	docker-compose run --rm query python query.py --storage-dir /data/storage --pattern $(pattern)

query-index:
	docker-compose run --rm query python query.py --storage-dir /data/storage --index-type $(type) --index-value $(value)

# Local development commands
local-setup:
	mkdir -p logs data/collected data/parsed data/storage/index data/storage/active data/storage/archive

local-run: local-setup
	python integration/pipeline.py --config integration/config.yml

local-stop:
	pkill -f "python.*pipeline.py" || true
	pkill -f "python.*generator.py" || true
	pkill -f "python.*collector.py" || true
	pkill -f "python.*parser.py" || true
	pkill -f "python.*storage.py" || true

# View logs
view-logs:
	docker-compose logs -f

Building and Testing the System

Now let's build, run, and test our integrated log processing pipeline.

Step 1: Build the Docker containers

make build

Step 2: Run the system

make run

Step 3: Check the logs to see if the system is running properly

make view-logs

Step 4: Query logs

# Search logs by pattern
make query pattern="error"

# Search logs by index
make query-index type=level value=ERROR

Step 5: Stop the system

make stop

Running Locally Without Docker

If you want to run the system locally without Docker:

1. Set up the directory structure:

make local-setup

2. Run the integrated pipeline:

make local-run

3. Stop the pipeline:

make local-stop

Success Criteria

You'll know your implementation is successful when:

1. The log generator is producing logs at the specified rate

2. The collector is detecting and collecting new logs

3. The parser is transforming logs into structured data

4. The storage system is storing and indexing the logs

5. The query tool can search and retrieve logs

6. The entire pipeline runs end-to-end without errors

Working Code Demo:

Homework Assignment: Enhancing the Log Processing Pipeline

Now that you've built a basic log processing pipeline, let's enhance it with additional functionality.

Assignment Tasks:

1. Add support for multiple log formats in a single pipeline instance

2. Implement a simple web interface for the query tool

3. Add basic metrics collection to monitor system performance

4. Implement a simple log filtering mechanism to exclude certain logs

5. Add support for compressed log archives to save space

Solution Steps:

1. Modify the generator to produce multiple log formats

2. Update the collector to detect log formats

3. Enhance the parser to dynamically choose the correct parsing strategy

4. Add metrics collection to each component

5. Create a simple web interface for the query tool

6. Implement log filtering logic

7. Add support for compressing archived logs

Here's a simple example of how to implement a web interface for the query tool:

query/web_interface.py

Then modify the Dockerfile for the query component:

# query/Dockerfile
FROM python:3.9-slim

WORKDIR /app

COPY query.py web_interface.py /app/

# Install Flask
RUN pip install flask

# Create required directories
RUN mkdir -p /data/storage

# Expose port for web interface
EXPOSE 8000

CMD ["python", "web_interface.py"]

And update the docker-compose.yml to expose the port:

yaml

query:
  build:
    context: ./query
  volumes:
    - storage-data:/data/storage
  ports:
    - "8000:8000"
  depends_on:
    - storage
  command: python web_interface.py

Conclusion

Congratulations! You've now built an end-to-end log processing pipeline that generates, collects, parses, stores, and queries logs. This system demonstrates several key concepts in distributed systems:

1. Component-based architecture: Breaking the system into specialized components

2. Data flow management: Managing how data moves between components

3. State management: Tracking and maintaining system state

4. Scalability: Designing components that can work independently

5. Integration: Combining separate components into a cohesive system

In a real-world distributed system, each of these components might run on different machines, communicating over a network. The design principles you've learned here—separation of concerns, clear interfaces, and robust data handling—are the foundation for building larger, more complex distributed systems.

In the next lessons, we'll expand this system to run across multiple machines and introduce more advanced distributed system concepts like consensus, replication, and fault tolerance.

Key Insights from Building Our Log Processing Pipeline

Now that we've built our end-to-end log processing pipeline, let's review some key distributed systems concepts that you've applied in this project:

1. Component-Based Architecture

You've implemented a system composed of five distinct components, each with a specific responsibility:

• Generator: Produces logs at a configurable rate

• Collector: Watches and detects new logs

• Parser: Transforms raw logs into structured data

• Storage: Organizes and maintains logs with rotation policies

• Query: Searches and analyzes stored logs

This separation of concerns is a fundamental principle in distributed systems design, allowing components to be developed, tested, and scaled independently.

2. Data Flow Management

Your pipeline demonstrates a clear data flow pattern:

1. Raw logs flow from the generator to log files

2. The collector reads these files and stores collections of logs

3. The parser transforms these collections into structured data

4. The storage system organizes and indexes this data

5. The query tool retrieves and filters the data

Each step in this flow involves data transformation, enhancing the value of the initial raw logs.

3. Interface Design

Each component in the system has well-defined interfaces for:

• Input: What data it consumes

• Output: What data it produces

• Configuration: How its behavior can be adjusted

This clear interface design is essential in distributed systems, as it allows components to evolve independently while maintaining compatibility.

4. State Management

Your system manages state in several ways:

• The collector keeps track of which parts of the log files it has already processed

• The parser maintains a list of files it has already parsed

• The storage system implements rotation policies based on time and size

State management becomes increasingly critical as distributed systems scale, ensuring consistency and preventing data loss.

5. Error Handling

Throughout the code, you've implemented error handling strategies:

• Using try-except blocks to catch and log exceptions

• Continuing operation when possible, even if individual operations fail

• Maintaining state information to recover from interruptions

Robust error handling is essential in distributed systems where failures are inevitable.

Further Learning Opportunities

As you continue with the 254-day course, consider exploring these advanced concepts:

1. Distributed Coordination: Using tools like ZooKeeper or etcd for coordinating activities across components

2. Message Queues: Implementing Kafka or RabbitMQ for reliable, asynchronous communication between components

3. Horizontal Scaling: Running multiple instances of each component to handle increased load

4. Monitoring and Alerting: Adding Prometheus and Grafana for system observability

5. Fault Tolerance: Implementing automatic recovery and failover strategies

Real-World Applications

The log processing pipeline you've built is similar to systems used in many real-world applications:

• Cloud Platforms: AWS CloudWatch Logs, Google Cloud Logging, and Azure Monitor use similar pipelines

• Observability Tools: Datadog, New Relic, and Splunk implement comparable architectures

• Security Systems: SIEM (Security Information and Event Management) systems follow similar data flow patterns

By understanding this foundational architecture, you're developing skills that apply to a wide range of distributed systems.

Conclusion

Congratulations on completing Day 7 of our 254-Day System Design journey! You've successfully integrated individual components into a complete log processing pipeline, demonstrating key distributed systems concepts along the way.

The skills you've learned—component design, data flow management, state handling, and system integration—form the foundation for building more complex distributed systems. As we progress through the course, we'll build upon these skills to tackle increasingly sophisticated system design challenges.

Remember that real-world distributed systems operate at much larger scales, often processing millions of logs per second across hundreds or thousands of servers. The principles you've learned here will scale up to those environments, with additional considerations for networking, security, and extreme resilience.

Keep experimenting with your pipeline, try the homework assignment, and prepare for our next lesson where we'll start exploring how to distribute this system across multiple machines!
