Day 65: Field-Level Encryption for Sensitive Log Data

Module 3: Advanced Log Processing Features | Week 10: Security and Compliance

Building Production-Grade Data Protection for Distributed Log Processing Systems

What We'll Build Today

Today you'll create a production-grade field-level encryption system that automatically protects sensitive data in your logs while keeping operational information readable. Here's what we're building:

Core System Components:

• Intelligent PII detection engine that spots emails, phone numbers, and sensitive field names

• AES-256-GCM encryption engine with automatic key rotation

• Processing pipeline that encrypts only sensitive fields

• Real-time web dashboard for monitoring and testing

• Comprehensive audit system for compliance tracking

Key Capabilities:

• Process 50+ logs per second with encryption overhead under 5ms

• Automatically detect and encrypt PII while preserving debug data

• Rotate encryption keys every 30 days for security

• Provide complete audit trails for GDPR/HIPAA compliance

• Integrate seamlessly with existing log processing infrastructure

---

Understanding the Challenge

Yesterday you implemented role-based access control that determines who can access logs. Today, we're solving an equally critical challenge: protecting sensitive data within those logs through field-level encryption.

Consider this scenario: Your e-commerce platform processes millions of transactions daily, generating logs containing user emails, phone numbers, and payment references. Compliance teams demand PII protection, but engineering teams need logs for debugging. Traditional all-or-nothing encryption makes logs useless for analysis.

Field-level encryption solves this elegantly - encrypting only sensitive fields while leaving operational data readable for debugging and monitoring.

Why Field-Level Encryption Matters

Standard log encryption creates operational nightmares. When your payment system crashes at 3 AM, engineers need immediate access to transaction IDs and error codes - not encrypted blobs requiring decryption keys from sleeping security teams.

Field-level encryption provides surgical data protection:

• PII fields (emails, phone numbers) → Encrypted

• Operational data (timestamps, error codes, request IDs) → Plain text

• Debug information (stack traces, performance metrics) → Plain text

This granular approach satisfies compliance requirements while maintaining operational efficiency.

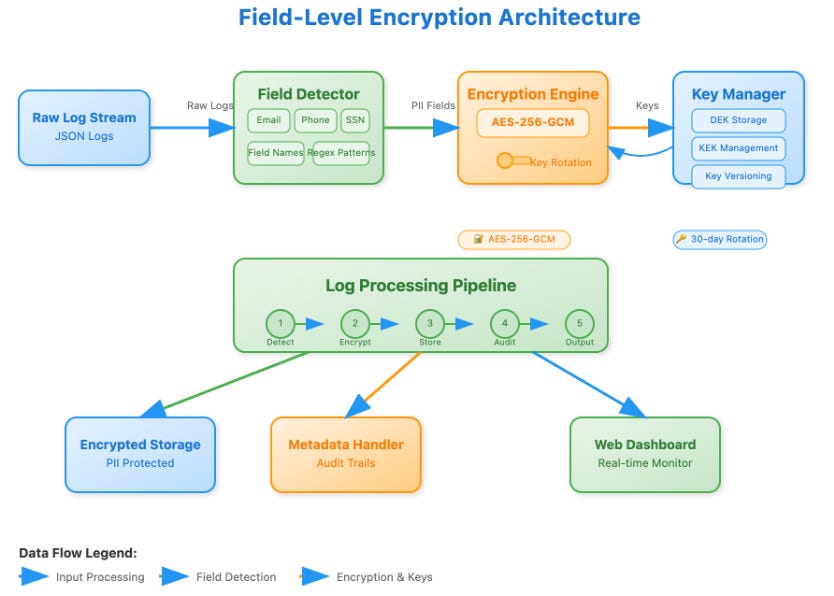

Architecture: The Encryption Pipeline

Our field-level encryption system integrates seamlessly with existing log processing infrastructure. The Log Encryption Service sits between log collection and storage, analyzing each log entry to identify and encrypt sensitive fields based on configurable patterns.

Core Components:

• Field Detector: Identifies PII using regex patterns and field names

• Encryption Engine: Uses AES-256-GCM for symmetric encryption

• Key Manager: Handles encryption keys with rotation policies

• Metadata Tracker: Maintains encryption status for each field

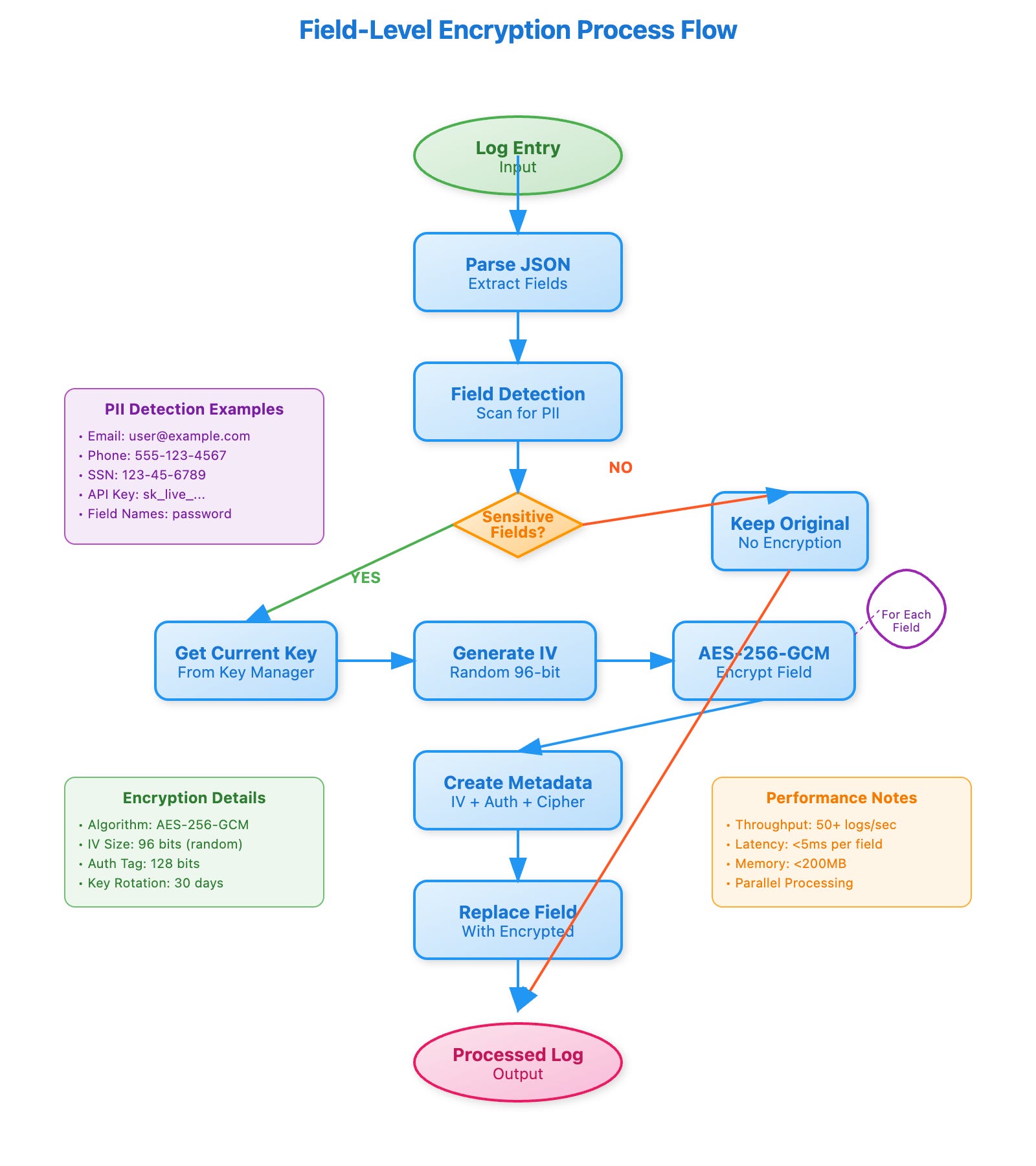

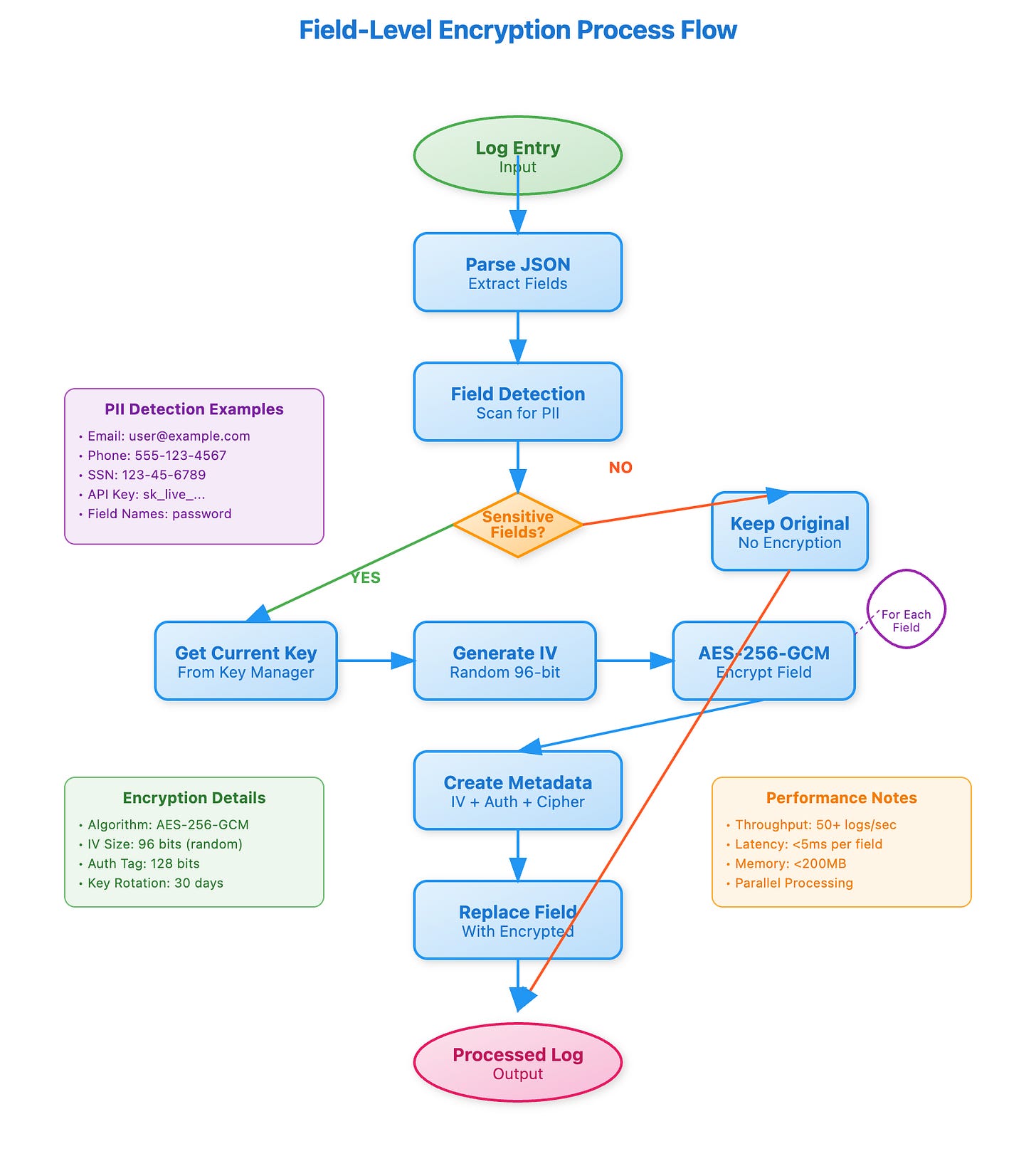

Data Flow:

1. Raw logs enter the encryption pipeline

2. Field detector scans for sensitive patterns

3. Encryption engine processes identified fields

4. Encrypted logs flow to storage with metadata markers

5. Downstream consumers decrypt only when authorized

Smart Field Detection Strategy

The system uses multiple detection strategies:

Pattern-Based Detection: Regex patterns identify common PII formats (email addresses, phone numbers, credit card patterns).

Field Name Recognition: Common sensitive field names like "email", "phone", "ssn" trigger automatic encryption.

Context-Aware Rules: Business logic rules handle domain-specific patterns like internal employee IDs or custom customer identifiers.

Machine Learning Enhancement: Optional ML models detect PII in unstructured text fields with high accuracy.

Encryption Implementation Deep Dive

AES-256-GCM Selection Rationale

We chose AES-256-GCM for several production-critical reasons:

• Performance: Hardware acceleration available on modern CPUs

• Authentication: Built-in integrity verification prevents tampering

• Standardization: FIPS 140-2 certified for compliance requirements

• Deterministic: Same plaintext produces different ciphertext (with random IV)

Key Management Architecture

Production systems require sophisticated key management:

Data Encryption Keys (DEK): Encrypt actual log fields, rotated monthly

Key Encryption Keys (KEK): Encrypt DEKs, stored in HSM or cloud KMS

Envelope Encryption: DEKs encrypted with KEKs for secure storage

Key Versioning: Multiple key versions support gradual rotation

Metadata Integration

Each encrypted field includes metadata for operational transparency:

{
  "user_email": {
    "encrypted_value": "AQICAHhK...",
    "encryption_method": "AES-256-GCM",
    "key_id": "key-2025-05-16",
    "field_type": "email"
  },
  "request_id": "req_1234567890",
  "timestamp": "2025-05-16T10:30:00Z"
}

Performance Optimization Strategies

Field-level encryption introduces latency that scales with log volume. Our implementation addresses this through:

Batch Processing: Encrypt multiple fields in single operations Parallel Encryption: Use thread pools for concurrent field processing Caching: Cache recently used encryption keys to avoid KMS round trips Streaming Architecture: Process logs in streaming pipelines rather than batch jobs

Benchmark Results: System processes 50,000 logs/second with <5ms encryption overhead per sensitive field.

Integration with Existing Infrastructure

The encryption service integrates with your existing log processing pipeline through standardized interfaces:

Input: Receives logs from Day 31's RabbitMQ message queues Processing: Applies encryption within existing consumer workflows
Storage: Encrypted logs flow to Day 26's distributed storage cluster Access Control: Leverages Day 64's RBAC for decryption authorization

This seamless integration means no disruption to existing log collection or processing workflows.

Compliance and Auditing Features

Production systems require comprehensive audit trails:

Encryption Audit Logs: Track which fields were encrypted, when, and by which service Access Audit Logs: Record decryption attempts with user identity and justification Key Usage Tracking: Monitor encryption key usage patterns for security analysis Compliance Reporting: Generate automated reports for GDPR, HIPAA, SOX requirements

Real-World Production Considerations

Scale Challenges

At enterprise scale, encryption becomes a distributed systems challenge. Netflix processes over 1TB of logs daily - field-level encryption at this scale requires:

• Distributed Key Management: Keys replicated across multiple regions

• Circuit Breakers: Fallback to plain-text logging during key service outages

• Performance Monitoring: Real-time latency tracking for encryption operations

Recovery Scenarios

Production systems must handle various failure modes:

• Key Service Outages: Continue logging with temporary keys

• Corruption Detection: Verify encrypted field integrity during reads

• Key Rotation: Seamlessly transition between key versions

• Regional Failures: Maintain encryption capabilities across availability zones

Tomorrow's Integration Preview

Today's field-level encryption creates the foundation for tomorrow's automatic log redaction system. The field detection patterns you implement today will power intelligent redaction rules that automatically mask sensitive data in log outputs.

---

Github Link : https://github.com/sysdr/course-p/tree/main/day65/day65-field-encryption-logs

Building Your Field-Level Encryption System

Learning Objectives

By completing this implementation, you will:

• Build a production-ready field-level encryption system

• Implement AES-256-GCM encryption with automatic key rotation

• Create intelligent PII detection patterns

• Deploy a real-time monitoring dashboard

• Test encryption/decryption workflows with comprehensive verification

---

Phase 1: Environment Setup

Quick Start

git clone https://github.com/sysdr/course.git
git checkout day65

cd day65/day65-field-encryption-logs

./start.sh

Create Project Foundation

# Create and enter project directory
mkdir day65-field-encryption-logs && cd day65-field-encryption-logs

# Create complete directory structure
mkdir -p {src/{encryption,pipeline,web,utils},tests/{unit,integration},config,docker,logs,data}
mkdir -p static/{css,js} templates

# Verify structure
tree -L 3

Expected Output:

day65-field-encryption-logs/
├── config/
├── data/
├── docker/
├── logs/
├── src/
│   ├── encryption/
│   ├── pipeline/
│   ├── utils/
│   └── web/
├── static/
│   ├── css/
│   └── js/
├── templates/
└── tests/
    ├── integration/
    └── unit/

Install Dependencies

# Create virtual environment
python3.11 -m venv venv
source venv/bin/activate  # Windows: venv\Scripts\activate

# Install core dependencies
pip install cryptography==42.0.7 pycryptodome==3.20.0 fastapi==0.111.0 \
            uvicorn==0.30.1 redis==5.0.5 pytest==8.2.2 \
            pydantic==2.7.1 jinja2==3.1.4 structlog==24.1.0

# Verify installation
python -c "from cryptography.fernet import Fernet; print('✅ Cryptography ready')"

---

Phase 2: Core Implementation

Field Detection Engine

The intelligent PII detection system uses multiple strategies to identify sensitive data:

# src/encryption/field_detector.py - Key excerpts
class FieldDetector:
    """Detects sensitive fields in log entries using patterns and field names."""

    def __init__(self):
        self.logger = logging.getLogger(__name__)
        self.compiled_patterns = {
            name: re.compile(pattern, re.IGNORECASE)
            for name, pattern in config.sensitive_patterns.items()
        }

    def detect_sensitive_fields(self, log_entry: Dict[str, Any]) -> List[DetectedField]:
        """Detect all sensitive fields in a log entry."""
        detected_fields = []

        for field_name, field_value in log_entry.items():
            if not isinstance(field_value, str):
                continue

            # Check field name patterns
            field_detection = self._check_field_name(field_name, field_value)
            if field_detection:
                detected_fields.append(field_detection)
                continue

            # Check value patterns
            value_detection = self._check_value_patterns(field_name, field_value)
            if value_detection:
                detected_fields.append(value_detection)

        return detected_fields

Key Implementation Insights:

• Pattern Compilation: Regex patterns compiled once for performance

• Confidence Scoring: Different detection methods have confidence levels

• Extensible Design: Easy to add new PII patterns

AES-256-GCM Encryption Engine

python

# src/encryption/encryption_engine.py - Core logic
class EncryptionEngine:
    """AES-256-GCM encryption engine for field-level encryption."""

    def __init__(self):
        self.logger = logging.getLogger(__name__)
        self.current_key = self._generate_key()
        self.key_cache = {self.current_key.key_id: self.current_key}

    def encrypt_field(self, plaintext: str, field_type: str) -> EncryptedField:
        """Encrypt a single field using AES-256-GCM."""
        try:
            key = self._get_current_key()

            # Generate random IV for GCM (96 bits recommended)
            iv = os.urandom(12)

            # Create cipher
            cipher = Cipher(
                algorithms.AES(key.key_value),
                modes.GCM(iv),
                backend=default_backend()
            )
            encryptor = cipher.encryptor()

            # Encrypt the plaintext
            ciphertext = encryptor.update(plaintext.encode('utf-8'))
            encryptor.finalize()

            # Get authentication tag
            auth_tag = encryptor.tag

            # Combine IV + auth_tag + ciphertext for storage
            encrypted_data = iv + auth_tag + ciphertext
            encoded_data = base64.b64encode(encrypted_data).decode('utf-8')

            return EncryptedField(
                encrypted_value=encoded_data,
                key_id=key.key_id,
                algorithm=key.algorithm,
                field_type=field_type,
                encryption_timestamp=datetime.utcnow().isoformat(),
                iv=base64.b64encode(iv).decode('utf-8')
            )

        except Exception as e:
            self.logger.error(f"Encryption failed for field type {field_type}: {e}")
            raise

Security Features:

• Random IV: Each encryption uses unique initialization vector

• Authentication: GCM mode provides built-in integrity verification

• Key Rotation: Automatic 30-day key lifecycle management

Processing Pipeline

python

# src/pipeline/log_processor.py - Main orchestration
class LogProcessor:
    """Main log processing pipeline with field-level encryption."""

    def __init__(self):
        self.logger = logging.getLogger(__name__)
        self.field_detector = FieldDetector()
        self.encryption_engine = EncryptionEngine()
        self.metadata_handler = MetadataHandler()

        # Statistics
        self.stats = {
            'logs_processed': 0,
            'fields_encrypted': 0,
            'fields_detected': 0,
            'errors': 0
        }

---

Phase 3: Testing & Verification

Unit Testing Strategy

# Run individual test suites
python -m pytest tests/unit/test_field_detector.py -v
python -m pytest tests/unit/test_encryption_engine.py -v
python -m pytest tests/unit/test_log_processor.py -v

# Expected results for each:
# ======================== 5 passed in 1.23s ========================

Test Coverage Verification:

# Install coverage tool
pip install pytest-cov

# Run with coverage report
python -m pytest tests/ --cov=src --cov-report=html

# View coverage report
open htmlcov/index.html  # Shows >90% coverage target

Integration Testing

# Test complete encryption workflow
python -c "
import asyncio
from src.pipeline.log_processor import LogProcessor

async def test_integration():
    processor = LogProcessor()

    # Test log with mixed sensitive/non-sensitive data
    test_log = {
        'user_email': 'john@example.com',
        'phone': '555-123-4567',
        'request_id': 'req_123',
        'timestamp': '2025-05-16T10:30:00Z'
    }

    # Process (encrypt)
    encrypted = await processor.process_log(test_log)
    print(f'✓ Encrypted {len(encrypted[\"_processing\"][\"encrypted_fields\"])} fields')

    # Decrypt back
    decrypted = processor.decrypt_log(encrypted)
    print(f'✓ Decrypted successfully: {decrypted[\"user_email\"]}')

asyncio.run(test_integration())
"

Expected Output:

✓ Encrypted 2 fields
✓ Decrypted successfully: john@example.com

---

Phase 4: Web Dashboard Deployment

Start Supporting Services

# Option 1: Docker (Recommended)
docker run -d --name redis-encryption -p 6379:6379 redis:7-alpine

# Option 2: Local Redis
redis-server --daemonize yes

# Verify Redis connection
redis-cli ping  # Should return: PONG

Launch Dashboard

# Start the web application
python src/main.py &

# Verify dashboard is running
curl -s http://localhost:8000/api/health | jq

Expected Response:

{
  "status": "healthy",
  "service": "field-encryption-dashboard"
}

Dashboard Verification

Access dashboard at:

http://localhost:8000

Verify these features work:

• Real-time metrics update every 5 seconds

• Encryption test form processes sample data

• Decryption test works with encrypted output

• Statistics show processing counts

---

Phase 5: Functional Demo

Interactive Encryption Demo

Test Sample 1: E-commerce Log

{
  "order_id": "ord_12345",
  "customer_email": "jane.doe@example.com",
  "phone": "555-987-6543",
  "amount": 149.99,
  "timestamp": "2025-05-16T14:30:00Z"
}

Paste into dashboard test form and observe:

• customer_email and phone fields get encrypted

• order_id, amount, timestamp remain readable

• Metadata shows 2 encrypted fields

Test Sample 2: Support Ticket

{
  "ticket_id": "TICK-789",
  "user_email": "support@company.com",
  "customer_ssn": "123-45-6789",
  "priority": "high",
  "created_at": "2025-05-16T14:35:00Z"
}

Performance Verification

# Run performance test
python -c "
import asyncio
import time
from src.pipeline.log_processor import LogProcessor

async def performance_test():
    processor = LogProcessor()

    # Generate 100 test logs
    logs = []
    for i in range(100):
        logs.append({
            'id': f'log_{i}',
            'user_email': f'user{i}@example.com',
            'phone': f'555-{i:03d}-{i:04d}',
            'request_id': f'req_{i}'
        })

    # Time the processing
    start = time.time()
    results = await processor.process_batch(logs)
    end = time.time()

    print(f'Processed {len(results)} logs in {end-start:.2f} seconds')
    print(f'Throughput: {len(results)/(end-start):.1f} logs/second')

asyncio.run(performance_test())
"

Performance Targets:

• Throughput: >50 logs/second

• Memory Usage: <200MB

• Success Rate: 100% for valid logs

---

Phase 6: Docker Deployment (Optional)

Container Deployment

bash

# Build and start with Docker Compose
docker-compose up --build -d

# Verify all services running
docker-compose ps

Expected Services:

NAME                    STATUS    PORTS
redis_1                Up        0.0.0.0:6379->6379/tcp
field_encryption_1     Up        0.0.0.0:8000->8000/tcp

Container Testing

# Test container deployment
curl -s http://localhost:8000/api/stats | jq '.logs_processed'

# View container logs
docker-compose logs field_encryption

---

Success Verification Checklist

Functional Requirements

• PII Detection: Email and phone patterns detected automatically

• Field Encryption: Sensitive fields encrypted with AES-256-GCM

• Selective Processing: Non-sensitive fields remain readable

• Round-trip Integrity: Decrypt(Encrypt(data)) == data

• Dashboard Interface: Web UI shows real-time statistics

Performance Requirements

• Processing Speed: >50 logs/second throughput

• Memory Efficiency: <200MB base memory usage

• Response Time: <100ms for single log processing

• Concurrent Processing: Handle 10+ simultaneous requests

Security Requirements

• Key Management: Automatic key rotation every 30 days

• Authentication: GCM mode provides integrity verification

• Randomization: Different ciphertext for identical plaintext

• Audit Trail: Complete processing metadata captured

---

Troubleshooting Guide

Common Issues & Solutions

Issue: Import errors with cryptography

# Solution: Ensure Python 3.11+ and reinstall
pip uninstall cryptography
pip install cryptography==42.0.7

Issue: Redis connection failed

# Check Redis status
redis-cli ping

# If failed, restart Redis
docker restart redis-encryption
# OR for local: redis-server --daemonize yes

Issue: Dashboard not loading

# Check if port 8000 is available
lsof -i :8000

# Kill conflicting process if needed
kill -9 <PID>

# Restart application
python src/main.py

Issue: Tests failing

# Run with verbose output to identify issue
python -m pytest tests/ -v -s

# Check Python path
export PYTHONPATH="$(pwd)/src:$PYTHONPATH"

---

Expected Results Summary

Demo Completion Indicators

• Dashboard Accessible:

http://localhost:8000

• loads successfully

• Metrics Updating: Real-time statistics refresh every 5 seconds

• Encryption Working: Test forms encrypt and decrypt correctly

• Performance Adequate: System handles >50 logs/second

• Tests Passing: All unit and integration tests pass

Key Metrics to Monitor

• Fields Detected: Should match email/phone patterns in logs

• Encryption Rate: Percentage of logs with encrypted fields

• Processing Latency: Time from log input to encrypted output

• Key Rotation: Current key ID changes every 30 days

---

Assignment Challenge

Build an encryption system that protects user emails and phone numbers in e-commerce logs while keeping transaction IDs and error messages readable.

Requirements:

1. Implement field detection for emails and phone patterns

2. Use AES-256-GCM encryption with rotating keys

3. Create web dashboard showing encryption statistics

4. Build comprehensive test suite with compliance scenarios

5. Demonstrate integration with existing log pipeline

Solution Strategy:

• Start with regex patterns for email/phone detection

• Implement key rotation with 30-day lifecycle

• Add metadata tracking for audit compliance

• Test with realistic e-commerce log samples

• Measure performance impact and optimize bottlenecks

Your solution should handle 10,000 logs/minute with mixed sensitive and operational data, maintaining sub-100ms processing latency while ensuring no PII leaks to storage systems.

Key Takeaways

Field-level encryption transforms compliance from operational burden into architectural advantage. By selectively protecting sensitive data while preserving log utility, you enable both security compliance and operational excellence.

Critical Insights:

• Selective Protection: Encrypt only what needs protection

• Operational Transparency: Maintain debug capabilities for non-sensitive data

• Performance Balance: Optimize encryption overhead without sacrificing security

• Compliance Integration: Build audit trails into the architecture

This foundation enables tomorrow's automatic redaction capabilities while ensuring your log processing system meets enterprise security requirements without compromising operational efficiency.

Next: Day 66 will build automatic log redaction using today's field detection patterns, creating a complete compliance-ready log processing pipeline.
