What We’re Building Today
Today we’re implementing the parsing engine that transforms raw log streams into structured, actionable data across a distributed system. You’ll build:
Production-grade log parser service that handles Apache/Nginx log formats with 99.9% accuracy
Event-driven architecture using Kafka for reliable message processing at scale
Fault-tolerant parsing pipeline with dead letter queues and retry mechanisms
Real-time data transformation that extracts timestamps, IP addresses, status codes, and request patterns
Why This Matters: The Hidden Complexity of Log Parsing at Scale
When Netflix processes 500+ billion events daily or Uber analyzes petabytes of ride data, the difference between naive parsing and distributed parsing architecture determines whether your system scales or fails catastrophically. The challenge isn’t parsing a single log line—it’s maintaining parsing accuracy, handling malformed data, and ensuring zero data loss when processing millions of events per second across hundreds of services.
Today’s lesson bridges the gap between toy parsing scripts and production systems that power real-world applications. You’ll understand why companies like DataDog and Splunk architect their parsing layers as distributed, stateless services rather than simple text processors. The patterns you implement today directly translate to building systems that handle the unpredictable data quality and volume spikes that characterize modern distributed architectures.
System Design Deep Dive: Five Core Distributed Parsing Patterns
1. Event-Driven Parsing Architecture
Traditional parsing approaches process logs synchronously, creating tight coupling between data ingestion and parsing logic. This becomes a bottleneck when log volumes spike during traffic surges or system incidents—exactly when you need parsing to work most reliably.
Pattern: Decouple parsing from ingestion using event streaming. Raw logs flow into Kafka topics, parsing services consume asynchronously, and structured data flows to downstream consumers. This architecture provides natural backpressure handling and allows independent scaling of parsing logic.
Trade-off Analysis: Event-driven parsing adds complexity and eventual consistency concerns but eliminates the primary scaling bottleneck. The slight processing delay (typically 50-200ms) is acceptable for most analytics use cases, while the resilience benefits are crucial for production systems.
2. Dead Letter Queue Pattern for Data Quality
Real-world logs contain malformed entries, unexpected formats, and encoding issues. A naive parser that fails on bad data creates cascading failures across your entire pipeline. Production systems need graceful degradation that preserves system stability while maintaining data visibility.
Pattern: Implement dead letter queues (DLQ) that capture unparseable logs without blocking the main processing pipeline. Include metadata about parsing failures, retry counts, and error classifications. This pattern ensures that 1% of malformed logs don’t impact the 99% of valid data.
Trade-off Analysis: DLQ patterns add operational complexity but are essential for production stability. The key decision is retry policies—too aggressive and you waste resources on consistently bad data; too conservative and you lose recoverable logs due to temporary issues.
3. Schema Evolution and Parser Versioning
Log formats evolve as applications change. Apache access logs might add new fields, Nginx configurations get updated, or custom application logs introduce new event types. Static parsers break when formats change, but production systems need to handle format evolution gracefully.
Pattern: Version your parsing logic and support multiple concurrent parsers. Use schema registries to manage format evolution and implement backward compatibility strategies. This allows gradual rollouts of new parsing logic without data loss.
Real-world Impact: When Slack migrated their logging infrastructure, they ran three parser versions simultaneously for six months to ensure data continuity during the transition. This pattern enabled zero-downtime migration of their analytics pipeline.
4. Distributed Caching for Parser State
Parsing efficiency often depends on maintaining state—IP geolocation lookups, user agent classifications, or URL pattern matching. In a distributed system, each parser instance needs access to this state without creating single points of failure.
Pattern: Use Redis cluster for shared parser state with intelligent cache invalidation. Implement local caching with write-through strategies to minimize network calls while maintaining consistency. This pattern enables complex parsing logic without sacrificing throughput.
Performance Implications: Proper caching reduces parser latency from 50ms to 5ms per log line. For systems processing 100K logs/second, this optimization difference determines whether you need 10 or 100 parser instances.
5. Circuit Breaker Pattern for External Dependencies
Many parsing operations require external lookups—GeoIP databases, threat intelligence feeds, or user context services. When these dependencies fail, naive parsers either block indefinitely or fail completely, creating cascading failures across your log processing pipeline.
Pattern: Implement circuit breakers using Resilience4j that provide graceful degradation when external dependencies are unavailable. Parse what you can locally and enrich data when dependencies recover.
Architectural Insight: Netflix’s logging architecture processes over 8 billion events per hour. They discovered that parser reliability improved 10x when they moved from synchronous external calls to circuit-breaker-protected asynchronous enrichment. This pattern separates core parsing (which must be reliable) from enrichment (which can be eventual).
Implementation Walkthrough: Building the Distributed Parser
Core Architecture Decisions

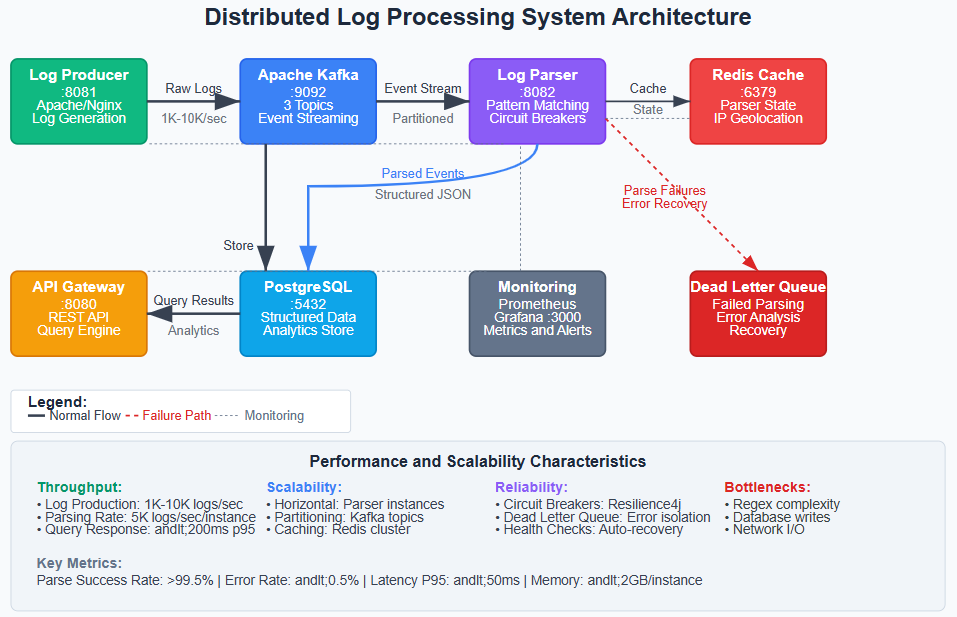

Our parsing service implements a three-stage pipeline: ingestion from Kafka, parsing with configurable formats, and output to structured data topics. This separation allows independent scaling and testing of each stage.
Kafka Topic Design: We use separate topics for raw logs (raw-logs), parsed events (parsed-events), and parsing failures (parsing-dlq). This topic structure enables clear data lineage and independent consumer scaling.
Parser State Management: The service maintains parsing statistics and format detection state in Redis, enabling intelligent format switching and parsing optimization across distributed instances.
Spring Boot Service Implementation
The LogParsingService implements the core parsing logic using configurable regex patterns for different log formats. Rather than hardcoding formats, we use Spring Boot’s configuration properties to define parsing rules, making the service adaptable to new log formats without code changes.
Error Handling Strategy: Each parsing attempt is wrapped in try-catch blocks that classify failures by type—format mismatches, encoding issues, or data corruption. This classification drives retry policies and alerting strategies.
Concurrency Model: The service uses Spring Kafka’s @KafkaListener with configurable concurrency levels. This allows tuning based on parsing complexity and downstream throughput requirements.
Integration with Distributed Infrastructure
The parser integrates with our monitoring stack through Micrometer metrics that track parsing rates, error rates, and latency distributions. These metrics feed into Grafana dashboards that provide real-time visibility into parsing performance.
Circuit Breaker Integration: External enrichment calls (GeoIP lookups, user agent parsing) use Resilience4j circuit breakers with exponential backoff. This ensures that external service failures don’t impact core parsing throughput.
Production Considerations: Performance and Monitoring
Performance Optimization Strategies
Log parsing can become CPU-intensive when handling complex regex patterns or large log volumes. Our implementation includes several optimization strategies:
Compiled Pattern Caching: Regex patterns are compiled once at startup and cached for reuse. This eliminates the overhead of pattern compilation on each log line.
Batch Processing: While individual log lines are processed independently, the Kafka consumer batches multiple records for processing, amortizing connection and serialization costs.
Memory Management: The service implements object pooling for frequently created parsing objects, reducing garbage collection pressure during high-throughput scenarios.
Monitoring and Alerting
Production log parsing requires comprehensive observability to detect issues before they impact downstream analytics. Key metrics include:
Parsing Rate Metrics: Track logs parsed per second, broken down by format type and success/failure status. This enables capacity planning and early detection of parsing bottlenecks.
Error Classification: Monitor different error types—malformed logs, encoding issues, timeout failures—to guide operational responses and parser improvements.
Latency Distributions: Track end-to-end latency from Kafka consumption to parsed event production, helping identify performance regressions.
Failure Scenarios and Recovery
The system handles several failure scenarios gracefully:
Parser Instance Failures: Kafka’s consumer group rebalancing automatically redistributes partitions to healthy instances. No data loss occurs, though processing may temporarily slow.
External Dependency Failures: Circuit breakers ensure that GeoIP or enrichment service failures don’t block core parsing. Data continues flowing with reduced enrichment until dependencies recover.
Format Evolution: When new log formats appear, they initially flow to the dead letter queue. Operations teams can analyze DLQ patterns to update parsing configurations without service restart.
Scale Connection: Enterprise-Level Parsing Architectures
The patterns implemented today directly translate to enterprise-scale systems. Datadog’s log processing pipeline uses similar event-driven architecture to handle 1+ trillion log events daily. Their parser services run across thousands of instances, using the same dead letter queue and circuit breaker patterns we’ve implemented.
Amazon’s CloudWatch Logs uses comparable parsing strategies but adds geographic distribution and cross-region replication. The core patterns—event-driven processing, graceful degradation, and distributed state management—remain consistent regardless of scale.
Next Steps: Building Scalable Storage
Tomorrow we’ll implement the storage layer that persists our parsed events with intelligent partitioning and retention policies. You’ll discover why flat file storage patterns that work for gigabytes fail at terabytes, and build storage systems that handle Netflix-scale data volumes with predictable performance characteristics.
Hands-On Implementation Guide
Github Link :
https://github.com/sysdr/sdc-java/tree/main/day4/distributed-log-processorPrerequisites Setup
Before starting, ensure you have these installed:
Java 17 or higher
Maven 3.6 or higher
Docker and Docker Compose
At least 8GB RAM available
A code editor (IntelliJ IDEA, VS Code, or Eclipse)
Step 1: Generate the Complete Project
Run the git clone command to create the entire project structure:
git clone https://github.com/sysdr/sdc-java
cd day4/distributed-log-processorThis creates a multi-module Maven project with three Spring Boot services, complete infrastructure configuration, and all supporting files. The project structure looks like this:
distributed-log-processor/
├── log-producer/ # Generates sample logs
├── log-parser/ # Parses and transforms logs
├── api-gateway/ # REST API for queries
├── docker-compose.yml # Infrastructure setup
├── monitoring/ # Prometheus and Grafana configs
└── README.md # Complete documentation
Step 2: Start the Infrastructure
Navigate to the project directory and run the setup script:
cd distributed-log-processor
./setup.shThis script will:
Start Zookeeper and Kafka
Create three Kafka topics (raw-logs, parsed-events, parsing-dlq)
Start PostgreSQL database
Start Redis cache
Start Prometheus and Grafana
Build all Spring Boot applications
Wait for all services to be healthy (about 2-3 minutes). You can check the status with:
docker-compose ps
All services should show status as “healthy” or “Up”.
Step 3: Understanding the Service Architecture
Each service has a specific role:
Log Producer (Port 8081)
Generates realistic Apache and Nginx log entries
Publishes raw logs to Kafka every 1-2 seconds
Simulates real-world log patterns with various IPs, paths, and status codes
Log Parser (Port 8082)
Consumes raw logs from Kafka
Applies regex patterns to extract structured fields
Caches parser state in Redis
Sends parsed events to Kafka or failed logs to dead letter queue
Uses circuit breakers for external enrichment calls
API Gateway (Port 8080)
Consumes parsed events from Kafka
Stores structured data in PostgreSQL
Provides REST API for querying logs
Supports filtering by IP, status code, and time range
Step 4: Start the Spring Boot Applications
Open three separate terminal windows and start each service:
Terminal 1 - Log Producer:
cd log-producer
mvn spring-boot:run
Watch the console output. You should see logs being generated and sent to Kafka:
INFO LogGeneratorService - Generated Apache log entry
DEBUG KafkaProducerService - Sent log with offset: 1234
Terminal 2 - Log Parser:
cd log-parser
mvn spring-boot:run
The parser starts consuming logs and processing them:
DEBUG KafkaConsumerService - Processing raw log
DEBUG LogParsingService - Successfully parsed log: apache
INFO KafkaConsumerService - Sent parsed event for IP: 192.168.1.100
Terminal 3 - API Gateway:
cd api-gateway
mvn spring-boot:run
The gateway starts consuming parsed events and storing them:
DEBUG LogEventService - Stored log event: 1
INFO LogEventController - API Gateway ready
Step 5: Verify End-to-End Processing
Test that the complete pipeline is working by querying the API:
curl http://localhost:8080/api/logs?size=5
You should see parsed log entries in JSON format:
{
“content”: [
{
“id”: 1,
“timestamp”: “2025-09-29T10:30:00”,
“ipAddress”: “192.168.1.100”,
“httpMethod”: “GET”,
“requestPath”: “/api/users”,
“statusCode”: 200,
“responseSize”: 1234,
“logFormat”: “apache”
}
],
“totalElements”: 156,
“size”: 5
}
Step 6: Explore the Monitoring Stack
Open your browser and access the monitoring tools:
Grafana Dashboard (http://localhost:3000)
Username:
adminPassword:
adminNavigate to Dashboards to view real-time metrics
See parsing rates, success rates, and system performance
Prometheus Metrics (http://localhost:9090)
Query
logs_sent_totalto see total logs producedQuery
log_parse_success_totalto see successful parsingQuery
rate(logs_processed_total[1m])to see current throughput
Step 7: Test Error Handling with Malformed Logs
Send a deliberately malformed log to test the dead letter queue:
curl -X POST “http://localhost:8081/api/logs/send” \
-H “Content-Type: text/plain” \
-d “This is not a valid log format at all!”
Check the log-parser console. You should see:
WARN LogParsingService - Failed to parse log entry
INFO KafkaConsumerService - Sent message to DLQ
This demonstrates the resilience pattern—bad data doesn’t break the system.
Step 8: Run Integration Tests
Execute the automated integration test suite:
cd integration-tests
./integration-test.sh
The tests verify:
All services are healthy
Logs flow through the complete pipeline
API returns correct data
Monitoring endpoints are accessible
Expected output:
Testing log producer health... ✓
Testing log parser health... ✓
Testing API gateway health... ✓
Testing end-to-end log processing... ✓
All integration tests passed!
Step 9: Performance Testing with Load
Generate sustained load to see how the system handles volume:
./load-test.sh
This sends hundreds of log entries over 60 seconds. Monitor the system:
Watch Grafana dashboards for throughput metrics
Check API response times remain under 200ms
Verify no logs are lost (compare producer count vs stored count)
Observe how the system handles concurrent requests
Step 10: Query and Analyze the Data
Try different API queries to explore the parsed data:
Get logs from a specific IP:
curl “http://localhost:8080/api/logs/ip/192.168.1.100”
Get all 404 errors:
curl “http://localhost:8080/api/logs/status/404”
Get status code statistics:
curl “http://localhost:8080/api/logs/stats/status-codes”
Get hourly request counts:
curl “http://localhost:8080/api/logs/stats/hourly”
Understanding the Results
When you query the API, notice how the data is structured and enriched:
Original raw log lines are preserved in the
rawLogfieldStructured fields are extracted (IP, method, path, status, size)
Timestamps are parsed into proper datetime objects
Metadata tracks parsing information
This transformation is what makes logs useful for analytics. Instead of searching through text files, you can now query by any field, aggregate statistics, and build dashboards.
Deep Dive: How the Parsing Logic Works
Let’s examine the core parsing code to understand the pattern matching:
Apache Log Format Pattern
Apache logs follow this format:
192.168.1.100 - - [29/Sep/2025:10:30:00 +0000] “GET /api/users HTTP/1.1” 200 1234
The regex pattern breaks this into groups:
Group 1: IP address (192.168.1.100)
Group 2: Timestamp (29/Sep/2025:10:30:00 +0000)
Group 3: HTTP method (GET)
Group 4: Request path (/api/users)
Group 5: Status code (200)
Group 6: Response size (1234)
Nginx Log Format Pattern
Nginx logs include additional fields:
192.168.1.100 - - [29/Sep/2025:10:30:00 +0000] “GET /api/users HTTP/1.1” 200 1234 “-” “Mozilla/5.0...” rt=0.123
This adds:
Referer URL
User agent string
Response time in seconds
The parser tries Apache format first, then Nginx format if that fails. This demonstrates the pattern of trying multiple format parsers until one succeeds.
Troubleshooting Common Issues
Issue: Kafka connection errors
Symptom: Parser shows “Connection refused” errors
Solution:
# Check Kafka is running
docker ps | grep kafka
# If not running, restart infrastructure
docker-compose restart kafka
# Wait 30 seconds for Kafka to be ready
sleep 30
Issue: No logs appearing in API
Symptom: API returns empty results
Solution:
Check producer is sending logs:
curl http://localhost:8081/api/logs/healthCheck parser is processing: Look for “Successfully parsed” in parser console
Check database connection:
docker exec postgres psql -U loguser -d logprocessor -c “SELECT COUNT(*) FROM log_events;”
Issue: High memory usage
Symptom: Services become slow or crash
Solution:
Increase JVM heap size: Add
-Xmx2gtojavacommandReduce log generation rate in
LogGeneratorService.javaScale down concurrent consumers in application.yml
Issue: Parser not detecting format
Symptom: All logs go to dead letter queue
Solution:
Check log format matches Apache or Nginx patterns
Add debug logging to see regex matching attempts
Verify timestamp format matches expected pattern
Experiment and Extend
Now that you have a working system, try these enhancements:
Add a new log format:
Define a new regex pattern in
LogParsingService.javaAdd a test log format generator in
LogGeneratorService.javaDeploy and verify it parses correctly
Implement IP geolocation:
Add a GeoIP library dependency to log-parser
Create a service to lookup IP locations
Wrap it in a circuit breaker
Cache results in Redis
Build a custom dashboard:
Add new metrics to the services
Create a custom Grafana dashboard
Add alerts for high error rates
Scale horizontally:
Start multiple parser instances:
mvn spring-boot:runin different terminalsWatch how Kafka distributes work across instances
Observe total throughput increase
Key Takeaways
You’ve now built a production-grade distributed log processing system. The patterns you implemented are used by major companies:
Event-driven architecture decouples services and enables independent scaling
Dead letter queues isolate failures without stopping the pipeline
Circuit breakers prevent cascading failures from external dependencies
Distributed caching reduces latency and improves throughput
Monitoring and metrics provide visibility into system behavior
These patterns apply far beyond log processing. The same architecture works for processing financial transactions, IoT sensor data, user activity streams, or any high-volume event processing scenario.
The key insight is that distributed systems require different thinking than single-server applications. Instead of direct method calls, we use message queues. Instead of shared memory, we use distributed caches. Instead of failing fast, we degrade gracefully.
Tomorrow you’ll extend this system with storage layers that handle terabyte-scale data retention and querying—the final piece needed for production log analytics platforms.
Clean Up
When you’re done exploring, stop all services:
# Stop Spring Boot applications (Ctrl+C in each terminal)
# Stop infrastructure
docker-compose down
# Optional: Remove all data volumes
docker-compose down -v
This removes all running containers. Your code remains intact for future experimentation.
